20 kW Towable Mobile Diesel Generator
- SKU # AGi20PM
- $22,00000 $22,000.00
AGi20PM | 2.2 L | 20 kW
TOWABLE DIESEL GENERATOR
STANDBY POWER RATING
20 KW , 20 KVA , 60 HZ.
PRIME POWER RATING
18 KW, 18 KVA, 60 HZ.
Custom Branding and Color Available
GENERAL SPECIFICATIONS
| Model | AGi20PM |
| Power | 20 kW Standby 18 kW Prime |
| Type | Diesel |
| Engine | Perkins | 404D-22G | 2.2L | 4 Cylinder |
| Power Outlets | 2 - 120 Volt | 20 Amp | Duplex | 5-20R 2 - 120 Volt | 30 Amp | Twistlock | L6-30R 1 - 120 / 250 Volt | 30 Amp | Twistlock | L14-30 1 - 120 / 240 Volt |50 Amp | Twistlock | C6369 |
| Alternator | Single Phase | 120/240 Volt | 1 Phase | Brushless | AVR |
| Enclosure | Sound Attenuated, Weather Resistant |
| Trailer | 3,500 lb | Single Axle |

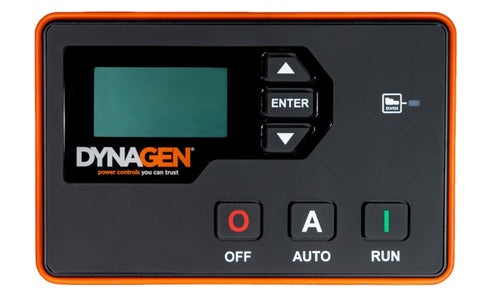

| Instrumentation | Illuminated Auto-Start Controller | DynaGen TG410 |
| Generator Dimensions | 76” x 35” x 46” |
| Trailer Dimensions | 10.6’ x 4.7’ |
| Generator Weight | 2100 lbs |
| Approvals | CSA / EPA |
| CAD Drawings | PDF 2D Drawings |
| Specifications | PDF Specifications |
STANDARD FEATURES
MOBILE / TOWABLE GENERATOR
- Enclosed silenced generator
- Powered by Perkins engines
- All stainless steel fasteners
- Large capacity fuel tank
- Heavy duty trailer
- Made In Canada
- Customizable electrical panel
- Reduced maintenance costs
ENGINE
- Exhaust Silencer
- Oil pressure switch
- Oil pressure sensor
- Coolant temperature switch
- Coolant temperature sensor
- Coolant level sensor
- EZ-Oil drain valve
- Primary fuel filter
- Fuel/water separator
COOLING SYSTEM
- Factory-installed radiator
- 50/50 ethylene glycol antifreeze
- 120 VAC engine block coolant heater
ENGINE ELECTRICAL SYSTEM
- Starter battery
- Battery charging alternator
- Battery cables
- Battery tray
- Solenoid activated starter motor
- Complete engine instrumentation
ALTERNATOR SYSTEM
- UL / CSA approved
- Brushless excitation
- Sealed bearings
- Class H insulation
- Voltage regulator
- Main circuit breaker
GENERATOR CONSTRUCTION
- Steel powder coated base frame assembly
- All stainless steel fasteners
- Vibration Isolation
ENCLOSURE
- Sound attenuated, weather resistant
- Galvannealed steel canopy
- Powder coat finish
- Stainless steel fasteners
- High-performance sound-absorbing material
- Fully lockable enclosure
- Weather stripping around doors
- Weather resistant construction
- Stamped air-intake louvers or vents
- Sound attenuated insulation - 65 dB(A) @23 feet
FUEL TANK
- Internal fuel-tank sub-base diesel fuel tank
- Powder coated steel construction, UL Listed
- Direct readable fuel gauge
- Controller monitored electronic gauge
- Sensors, vents, valves
CONTROLLER
FEATURES
- Designed for harsh conditions with extreme shock and vibration
- Easy to understand display messages. (no codes)
- Automatic start/stop control when used with a transfer switch or remote
- Clear generator instrumentation, protection and control. Includes battery voltage, AC ammeter, oil pressure, engine temperature, fuel level, fuel leak, hour meter, tachometer, frequency, voltage, coolant level, service clock, exerciser preheat, postheat, 150 event log, load balance, emergency shut-down monitors
- CANBUS engine control
- Field programmable settings (password protected)
- Programmable setpoint warnings, alarms levels, and sensor trim feature.
- Programmable low battery auto start / exercise
- 2-Wire start compatible
- Computer programmable via USB Port
- Uses standard automotive cube relays
- 5 Year Manufacturer Warranty
CONTROLLER SPECIFICATIONS
| Controller Specifications | |
| Model | DynaGen TG410 |
| Operating Voltage | 5.5 to 38 Volts DC Cranking dropouts to 0 VDC for 50 mS Also meets SAEJ113-11 |
|
Standby current draw |
50 ma |
| Protection | Reverse battery and overload protected |
| Operating Temperature | -40c - 70c (-40 - +150 F) |
|
Vibration and Shock |
SAEJ1455 |
| Electromagnetic Compatibility | Meets or exceeds MIL-STD-461E Conducted Emissions |
| Configurable Switched Inputs | 5 |
| Configurable Switched Outputs | 4 |
| Warranty | 5 Years |
| Specifications | |
| User Manual |
POWER PANEL
- 2 x 120 Volt duplex receptacles
- 2 x 120/240 locking receptacle L14-30
- 4 x USB power 4.2A
- Emergency stop / Lockout key switch
- Main breaker
- Load terminal connections
- Ground terminal block
- Alarm and run signal out
- Remote monitoring and control (Optional)
OPTIONS
ENGINE OPTIONS
- Battery charger 1 Amp
- Battery charger 4 Amp
- Block heater 400 Watt
- HOTstart circulation pump 1000 Watt
- Battery warmer
- Spare filters
- Ambient air heater | Anti-condensation heater
CIRCUIT BREAKER OPTIONS
- Shunt trip
- Auxiliary contact
GENERATOR SET
- Remote monitoring and control (cellular based)
- Load center
- Coolant heater ball valves
- Fluid containment pans
ENCLOSURE OPTIONS
- Ambient air heater
- 12 VDC Enclosure Lighting Kit
- 120 VAC Enclosure Lighting Kit
CONTROL SYSTEM
- E-Stop | Red Mushroom-Type
- Cellular remote monitoring and control
- Modbus terminal Block
- Canbus terminal Block
- Alarm signal block
- Engine run signal block
- ATS signal block
- Battery disconnect switch
ENGINE SPECIFICATIONS
| ENGINE SPECIFICATIONS | |
| Make | Perkins |
| Model | 404D-22G |
| Number of cylinders | 4 |
| Cycle | Four stroke |
| Induction system | Naturally aspirated |
| Compression Ratio | 23,3:1 |
| Bore | 84 mm |
| Stroke | 100 mm |
| Cubic capacity | 2.216 litres |
| Direction of rotation | Anti Clockwise when viewed from flywheel |
| Firing order | 1,3,4,2 |
| Estimated total weight of Electropak (dry) | 242 kg |
| Maintenance | Oil Changes 500 Hours |
| ENGINE PERFORMANCE | |
| Note: All data based on operation to ISO 3046-1:2002 standard reference conditions | |
| Speed variation at constant load | ± 0,5% |
| Test conditions - air temperature | 25 °C |
| Test conditions - barometric pressure | 100 kPa |
| Relative humidity | 31.5% |
| Air inlet restriction at maximum power (nominal) | 3 kPa |
| Exhaust back pressure at maximum power (nominal) | 10.2 kPa |
| Fuel temperature (inlet pump) | 40 °C |
| Sound Level Average sound pressure level for bare engine - WITHOUT inlet and exhaust or canopy enclosure at 1 metre |
79 dB(A) |
| All ratings certified to within | ± 5% |
|
If the engine is to operate in ambient conditions other than those of the test conditions, suitable adjustments must be made for these changes. For full details, contact Perkins Technical Service Department. Emissions Statement: Certified against the requirements of EU2007 (EU97/68/EC Stage II) and EPA Interim Tier 4 (EPA 40 CFR Part 1039 Interim Tier 4) legislation for nonroad mobile machinery, powered by constant speed engines |
|
ALTERNATOR SPECIFICATIONS
| Model | SM180C |
| Type | Brushless |
| Prime Power | 8.0 kW |
| Standby Power | 20.0 kW |
| Efficiency | 84.3% |
| Approvals | I EC60034,NEMA MG1-32,IS08528,CSA C22.2-100，VDE 0530，GB755 |
| Insulation | Class H |
| Voltage Regulation AVR Model VR301 | ± 0.5% |
| THD | No load<1.5% |
| Altitude | <=1000m |
| Winding Pitch | 2/3 |
| Protection | IP23 |
| Weight | 124 kG | 273.4 lb |
| 4 Pole Alternator | Brushless with AVR |
| Voltage Regulation | ±0.5% |
| Rated Output | 120/240 Volt | Single Phase 55 kW 69 kVA |
| Insulation | Class H |
| Warranty | 5 Years |
|
Ratings based on 60Hz / 1800RPM / 40℃ / PF 0.8 |
|
POWER RATINGS
| Single-Phase 120/240 VAC @1.0pf | 83 Amps |
| Three-Phase 120/208 VAC @0.8pf | 69 Amps |
| Three-Phase 277/480 VAC @0.8pf | 30 Amps |
| Three-Phase 346/600 VAC @0.8pf | 24 Amps |
FUEL CONSUMPTION RATES
Prime power rating is the maximum power accessible at the variable load for an unlimited number of hours per year in a variable load setting Standby Power rating is the maximum power available. No overload is permitted. Average variable load factor is 70%
Continuous Power is the non-varying load for an unlimited number of hours.
| Standby Power 20 kW | 6.9 L (1.82 gallon) / Hour |
| Prime Power 18 kW | 6.2 L (1.64 gallon) / Hour |
| 75% Prime Power | 4.8 L (1.27 gallon) / Hour |
| 50% Prime Power | 3.5 L (0.93 gallon) / Hour |
FUEL TANK
| Type | Single or Double Wall Diesel Sub-Base Tank |
| Design | Steel Construction with Secondary Containment Rapture Basin Design |Heavy Duty Side Channels |
| Approval | UL-142 / ULC-S601 Steel Construction (CSA B139 Optional) |
| Finish | Powder Coat Black |
| Vent/Fill/Alarm | UL/NFPA Sized Emergency Vents, 2” NPT 2” Normal Vent Low Fuel Level Alarm Switch Manual Locking Fill Cap Visual Fuel Level Gauge Fuel in basin alarm switch |
| Weight | 385 lb |
| Other | Lifting Plates on side of tank QTY (4) Top Mount Rupture Basin ULC-S601 Canadian |
| Vent Extensions | Optional |
TRAILER
| Construction | Formed Steel |
| Bed Size | 77” x 35” |
| Finish | Powder coat texture black |
| Suspension | Single 3.5K Torsion Suspension CSA Certified |
| Wheels | ST205/75R15 |
| Rims | White |
| Nitrogen Filled | Yes |
| Connection | 4 Pin |
| Coupler | 5-Position adjustable 2” ball |
| Jack | Pipe-mount swivel tongue jack |
| Plate Mount | Included |
| Fenders | Polycarbonate fenders |
| Warranty | 4 Years |
RATING DEFINITIONS
Standby - Applicable for a varying emergency load for the duration of a utility power outage with no overload capability.
Prime - Applicable for supplying power to a varying load in lieu of utility for an unlimited amount of running time. A 10% overload capacity is available for 1 out of every 12 hours.
